Technical Specifications
Key Specs
Top Speed50 mph
Range62 miles (Eco); 34 miles @ 40 mph
Weight (with battery)139 lb
Max Payload220 lb
Power System
Battery Voltage72V
ControllerFOC sine‑wave vector, 72V 30A
Undervoltage Protection60±1V
Charger Output84V 6A (100–240VAC input)

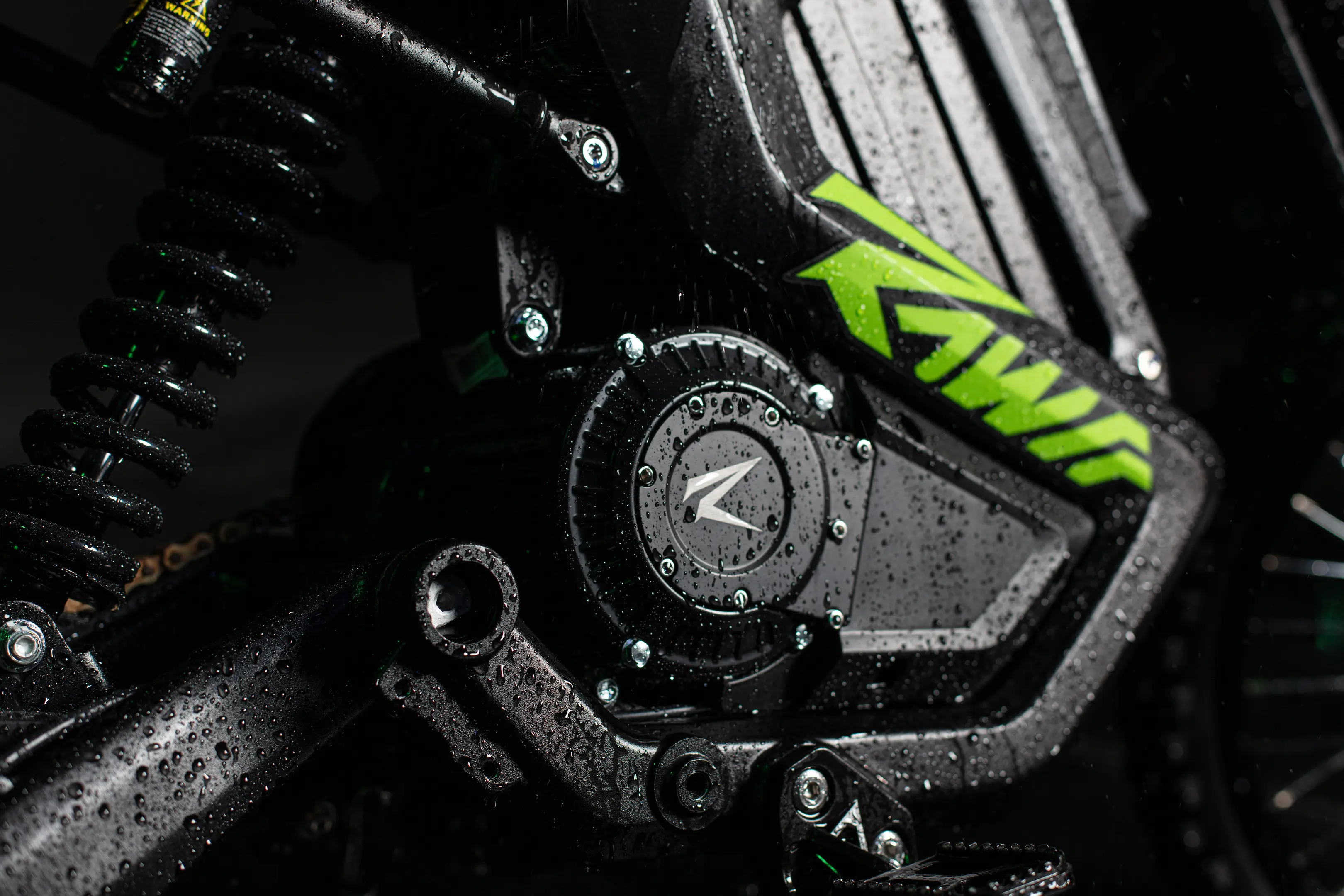

Motor
Rated Power3000 W
Max Power6.5 kW
Rated Torque28 Nm
Rated Speed7000 rpm
CoolingNatural cooling
Brake System
Front Rotor220 mm
Rear Rotor203 mm
Frame Details
FrameDual‑beam forged 6061 aluminum
Tire
Front Wheel/Tire19×1.6 rim, 70/100‑19 off‑road
Rear Wheel/Tire17×1.85 rim, 90/100‑17 off‑road
Suspension
Front Fork Travel180 mm (double‑shoulder fork)
Size
Length74 in
Width31.3 in
Height43.7 in
Wheelbase49.8 in
Seat Height35 in
Max Ground Clearance13.2 in

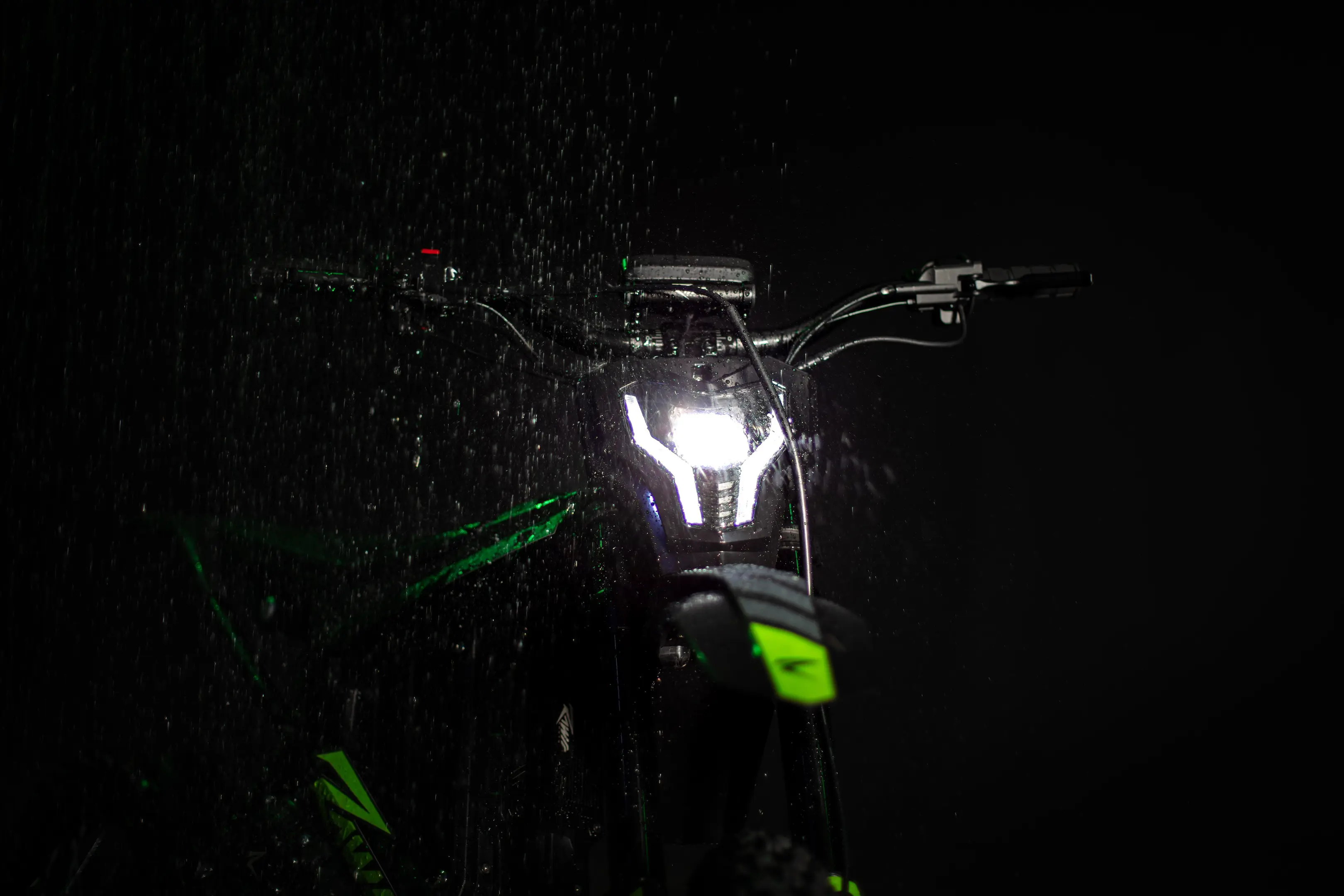

Protection
Motor & Controller IPIP66
Battery & Connectors IPIP55
Display
Display TypeLCD
Connectivity
Comm PortCAN / one‑wire
