Key Features
Technical Specifications
Key Specs
Top Speed56 mph
Net Weight161 lbs
Carry Capacity320 lbs
Seat Height33.5 in
Ground Clearance10.6 in
Wheelbase49.2 in
Vehicle Dimensions74.0 in x 31.7 in x 44.5 in
Side StandYes with Kill Switch
Rear Sprocket51T
Motor
Motor TypePMSM
Mounting PositionMid
Weight / External Diameter21.1 lbs / 6.1 in
Axial Length5.1 in
Peak Efficiency98%
Cooling MethodAir-Cooled
Controller
Controller TypeFOC
Dimensions6.3 in x 5.6 in x 3.1 in
Peak Efficiency98.5%
Power ModesEco, High, and Sport
Power System
Rated Voltage72V (DC)
Rated Torque / Peak Torque95 Nm / 115 Nm
Motor Shaft Output Torque @ 1000RPM339 lb-ft
Rated Rotation Speed5400 rpm
Peak Efficiency97%
Range of Efficiency (≥80%)3 Nm - 45 Nm
Transmission
Gear Ratio13:51
TransmissionMotorcycle Chain & 428 Drive Chain
ModelGerman Continental Brand, 8M CXA
Electrical Components
HornCQC
Battery72V 40AH Lithium Battery with 176 LG Cells
Battery Life Time500 Cycles
Battery Charge LevelIntegrated Battery LCD Display
Charger9A
Charging Time3.5 Hours
USB ConnectionType C

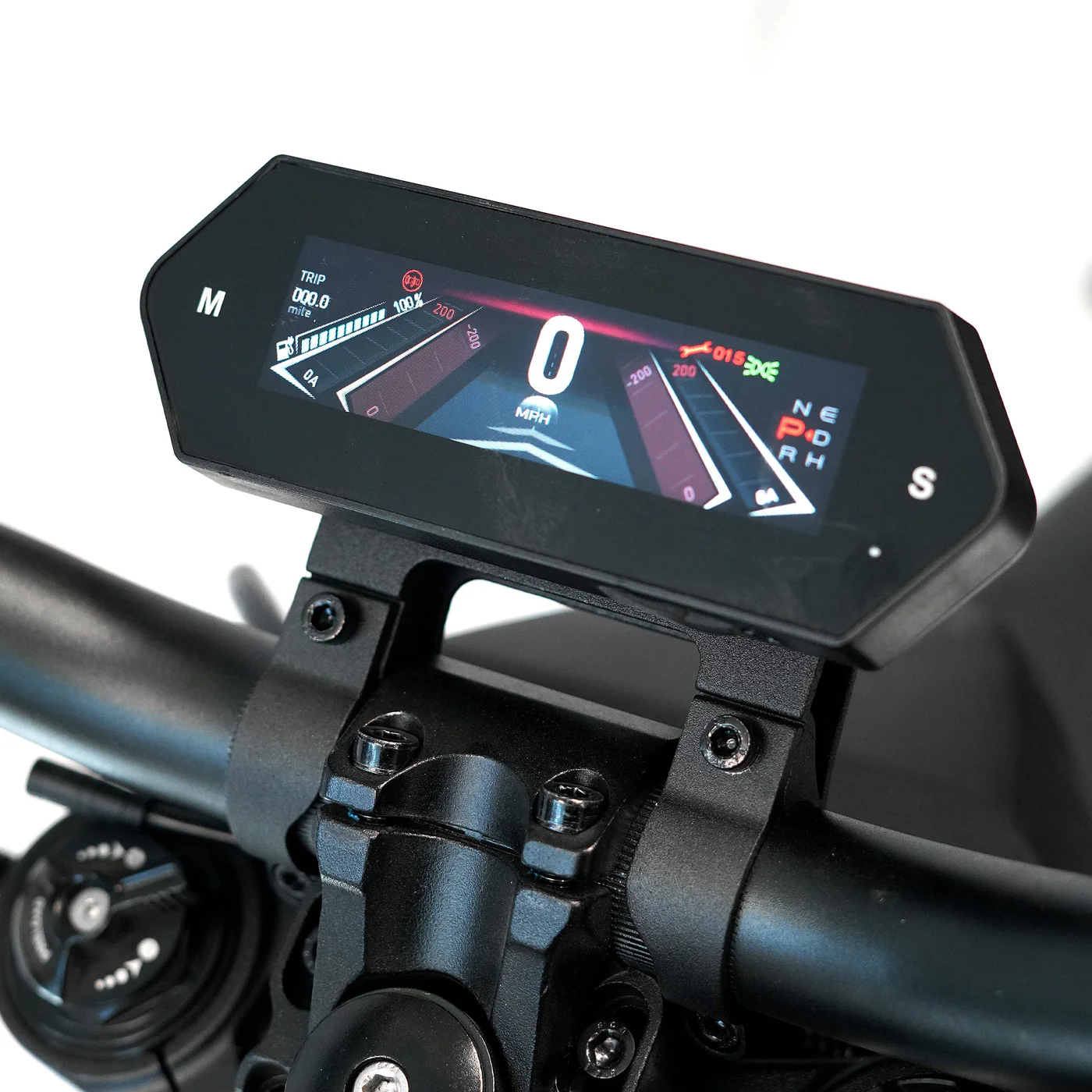

SpeedometerTFT
LED Headlight & Rear LightYes
Frame Details
Chassis - Swing Arm MaterialNo.6061 T4&T6 Aluminum
Chassis Construction MethodForged by 3000 Tons of Pressure
Chassis Surface & Color ProcessingBaked Paint

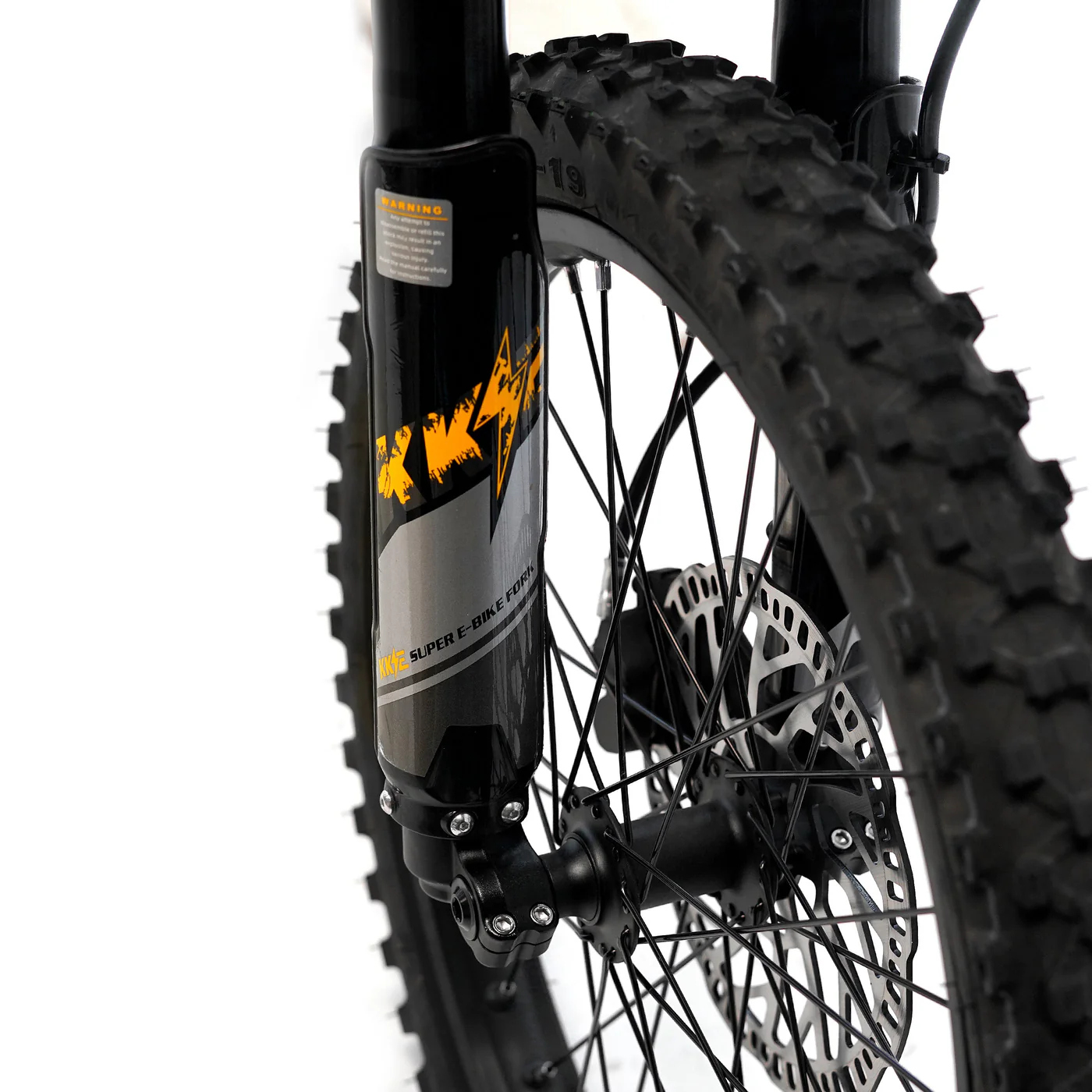

Front SuspensionInverted Suspension Fork with 7.9 in Travel
Rear Shock AbsorberKKE Suspension Link System
Wheel Type & SizeFront/Rear: 1.4-19, 1.6-19 Alloy Hubs
Drive
Top Speed56 mph
Battery Usage600 Uses
