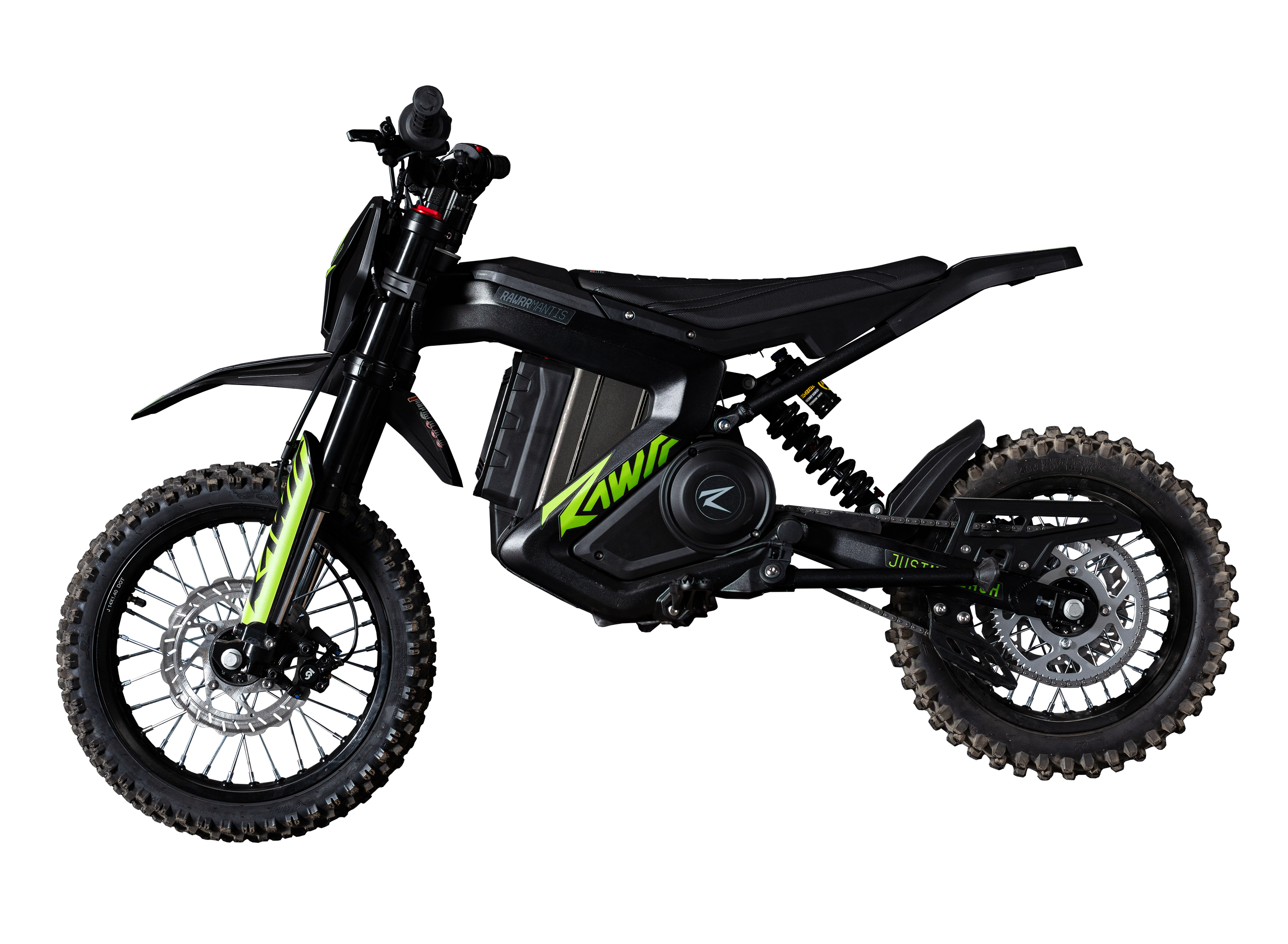

Rawrr

Mantis Mini

Kids Ride, Off-Road

$2,499.00

Color: Black

Visit our store for a test ride!

Key Features

Top Speed

30 mph

Motor

2000W nominal (3500W max)

Range

31.7 miles

Brakes

203 mm hydraulic disc (front & rear)

Water Resistance

IP66 (motor/controller), IP55 (battery/connectors)

Technical Specifications

Key Specs

Top Speed30 mph

Range31.7 miles

Weight (excl. battery)50 kg (14/12); 48 kg (12/10)

Max Load50 kg

Power System

Battery Voltage48V (model variant also 60V)

ControllerFOC sine‑wave vector

Controller Rated Input48V

Controller Rated Output Current30A

Undervoltage Protection41V (48V model)

Charger Output54.6V 6A (100–240VAC input)

Motor

Rated Power2000 W

Rated Torque132.8 ft lb (at wheel)

Maximum Power3500 W

Max Motor Speed3100 r/min

Climbing Angle40° max

CoolingNatural cooling

Brake System

Front Brake203 mm hydraulic disc

Rear Brake203 mm hydraulic disc

Tire

Front Wheel/Tire14×1.4 or 12×1.4 rim; 60/100‑14 or 60/100‑12 tire

Rear Wheel/Tire12×1.6 or 10×1.6 rim; 70/100‑12 or 70/100‑10 tire

Suspension

Front ForkDual shoulder, 100 mm travel

Rear ShockAdjustable hydraulic, 45 mm travel

Size

Dimensions (L×W×H)1495×671×900 mm (14/12); 1455×671×880 mm (12/10)

Wheelbase1037 mm

Seat Height640 mm (14/12); 620 mm (12/10)

Ground Clearance220 mm

Protection

Motor & Controller IPIP66

Battery & Connectors IPIP55

Display

InstrumentLCD Color

Connectivity

Comm PortCAN
